XiF SYV系列安装及拆卸轴承用液压螺母

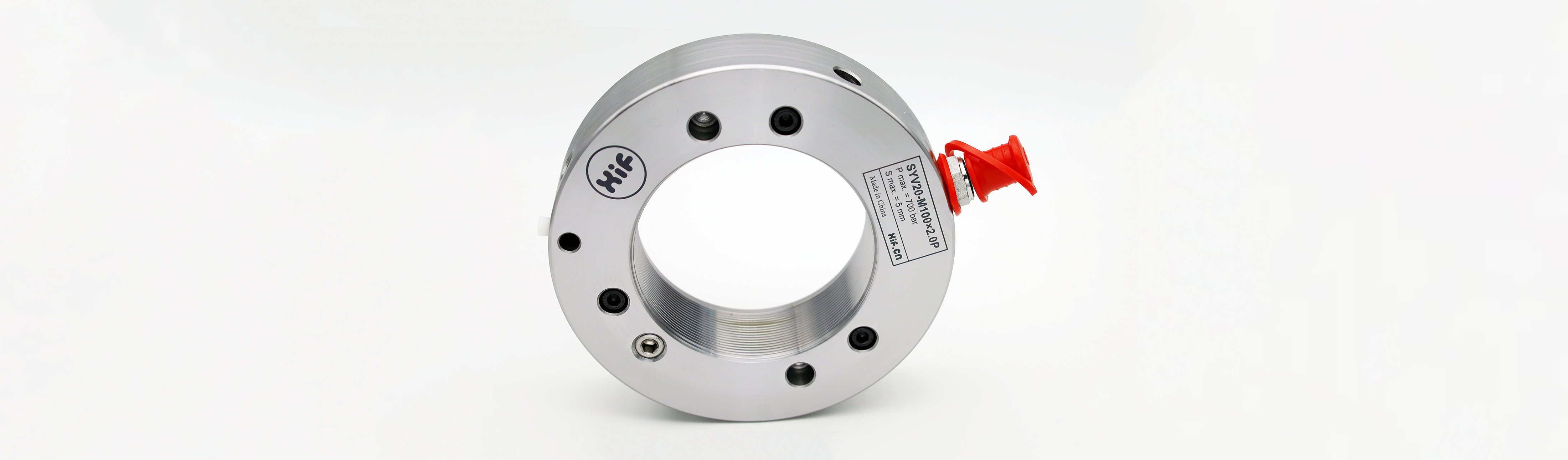

SYV系列安装及拆卸轴承用液压螺母

将带锥孔(孔锥度 1:12/1:30 )的滚动轴承安装在锥形轴承座上时需要较大的力,使用 SYV 系列液压螺母能促进这种较高驱动力的快速应用。使用 SYV 系列液压螺母也能简化从退卸套上拆卸轴承的过程。SYV 系列液压螺母按客户所需提供匹配的快速耦合接头,以连接液压油泵。快速耦合接头可安装于螺母的端面或侧面,使螺母可用于空间受限的工况。

一、应用

  1. 安装及拆卸轴承;
  2. 造纸机械、水泥机械、船舶冶金等领域;
  3. 安装及拆卸螺旋桨、舵瓦等;
  4. 拆卸高压的接台面,如火车轮、联轴器、飞轮及齿轮等。

二、特征

  • 尺寸范围广,适用于从 50mm 到 1180mm 的标准轴径
  • 材质 42CrMo,调质 28-32°;最高耐温 120℃;特殊表面处理,最高耐温可达 240℃
  • 可以选择不锈钢,镀镍或镀铬
  • 单向全钢高压快速耦合接头
  • 组件额定标准工作压力 800bar
  • 按要求提供特殊螺纹和尺寸的定制
  • 另有无螺纹孔的螺母以用于一些较特殊的工况

注意:标准配置不含液压油泵

三、尺寸参数表

SYV系列安装及拆卸轴承用液压螺母

型号GDHd1d2h1最大行程
S max
mm
压力500bar时
夹紧力
kN
SYV10M50×1.5P1143810450.545245
SYV11M55×2.0P1203810955.545250
SYV11-1M55×1.5P1203810955.545250
SYV12M60×2.0P1253811560.555253
SYV12-1M60×1.5P1253811565.555253
SYV13M65×2.0P1303812165.555284
SYV13-1M65×1.5P1303812165.555284
SYV14M70×2.0P1353812770.555328
SYV15M75×2.0P1403813275.555359
SYV16M80×2.0P1463813780.555392
SYV17M85×2.0P1503814285.555394
SYV18M90×2.0P1563814790.555396
SYV19M95×2.0P1623815395.555416
SYV20M100×2.0P16638158100.565435
SYV21M105×2.0P17238163105.565453
SYV22M110×2.0P17838169110.565470
SYV23M115×2.0P18238174115.565487
SYV24M120×2.0P18838179120.565504
SYV25M125×2.0P19238184125.565520
SYV26M130×2.0P19838190130.565520
SYV27M135×2.0P20438195135.565533
SYV28M140×2.0P20838200140.575552
SYV29M145×2.0P21439206145.575565
SYV30M150×2.0P22039211150.575602
SYV31M155×3.0P22639218155.575654
SYV32M160×3.0P23240224160.576698
SYV33M165×3.0P23840229165.576739
SYV34M170×3.0P24441235170.576758
SYV36M180×3.0P25641247180.576824
SYV38M190×3.0P2704225919187928
SYV40M200×3.0P28243271201881000
SYV41Tr205×4.0P28843276207881058
SYV42Tr210×4.0P29443282212891080
SYV43Tr215×4.0P30043287217891102
SYV44Tr220×4.0P30643293222891154
SYV45Tr225×4.0P31245300227891224
SYV46Tr230×4.0P31845305232891280
SYV47Tr235×4.0P326463112378101294
SYV48Tr240×4.0P330463162429101323
SYV50Tr250×4.0P342463292529101458
SYV52Tr260×4.0P356473412629111504
SYV54Tr270×4.0P368483522729121568
SYV55Tr275×4.0P375483592779121632
SYV56Tr280×4.0P380493632829121694
SYV58Tr290×4.0P390493752929131747
SYV60Tr300×4.0P4045038630210141896
SYV62Tr310×5.0P4165239731210141992
SYV63Tr315×5.0P4205240031710142020
SYV64Tr320×5.0P4285340932210142112
SYV66Tr330×5.0P4385341933210142166
SYV67Tr335×5.0P4455342633710142200
SYV68Tr340×5.0P4505443034210142272
SYV69Tr345×5.0P4565443634710142304
SYV70Tr350×5.0P4645644235210142448
SYV71Tr355×5.0P4705644835710152432
SYV72Tr360×5.0P4725645536210152504
SYV73Tr365×5.0P4825646036711152536
SYV74Tr370×5.0P4865646637211162584
SYV75Tr375×5.0P4955847537711162672
SYV76Tr380×5.0P4985847638211162696
SYV77Tr385×5.0P5045848338711162784
SYV79Tr395×5.0P5125839139711162848
SYV80Tr400×5.0P5226049940211172944
SYV82Tr410×5.0P5346151041211173056
SYV83Tr415×5.0P5406151641711173088
SYV84Tr420×5.0P5466152242211173120
SYV86Tr430×5.0P5566253243211173184
SYV87Tr435×5.0P5606253643712173224
SYV88Tr440×5.0P5666254344212173400
SYV90Tr450×5.0P5806455445212173536
SYV92Tr460×5.0P5906456546212173600
SYV94Tr470×5.0P6026557647212183672
SYV96Tr480×5.0P6126558748212193680
SYV98Tr490×5.0P6246659749212194048
SYV100Tr500×5.0P6366760950212194185
SYV102Tr510×6.0P6486862451212204264
SYV104Tr520×6.0P6586863452213204336
SYV106Tr530×6.0P6706964553213214496
SYV108Tr540×6.0P6826965754213214648
SYV110Tr550×6.0P6937066755213214736
SYV112Tr560×6.0P7047167856213224896
SYV114Tr570×6.0P7167268957213235048
SYV116Tr580×6.0P7267269958213235128
SYV118Tr590×6.0P7407271359213235328
SYV120Tr600×6.0P7487372160213235416
SYV122Tr610×6.0P7607473361314235496
SYV125Tr625×6.0P7757475262814235516
SYV126Tr630×6.0P7827475463214235824
SYV130Tr650×6.0P8047577565214236104
SYV131Tr655×6.0P8107578165814246144
SYV134Tr670×6.0P8267579667214246360
SYV136Tr680×6.0P8377780768314246552
SYV138Tr690×6.0P8487781969214256785
SYV139Tr695×6.0P8557882669814256896
SYV142Tr710×7.0P8707884071215257020
SYV144Tr720×7.0P8837985372315257424
SYV148Tr740×7.0P9107988074315257928
SYV150Tr750×7.0P9127988375215258265
SYV152Tr760×7.0P9358090676315258360
SYV156Tr780×7.0P9558392678315288544
SYV160Tr800×7.0P9708293680316288632
SYV166Tr830×7.0P10008296683316298808
SYV170Tr850×7.0P10208299085316299248
SYV176Tr880×7.0P105082102088316299184
SYV180Tr900×7.0P1070841043903162910008
SYV186Tr930×7.0P1100841073933163010320
SYV190Tr950×8.0P1120841097953163010920
SYV200Tr1000×8.0P11808811501002173011920
SYV212Tr1060×8.0P12559712251063183212880
SYV216Tr1080×8.0P128010012501083183313440
SYV224Tr1120×8.0P134010613101123193615200
SYV236Tr1180×8.0P143011314001183223916800
