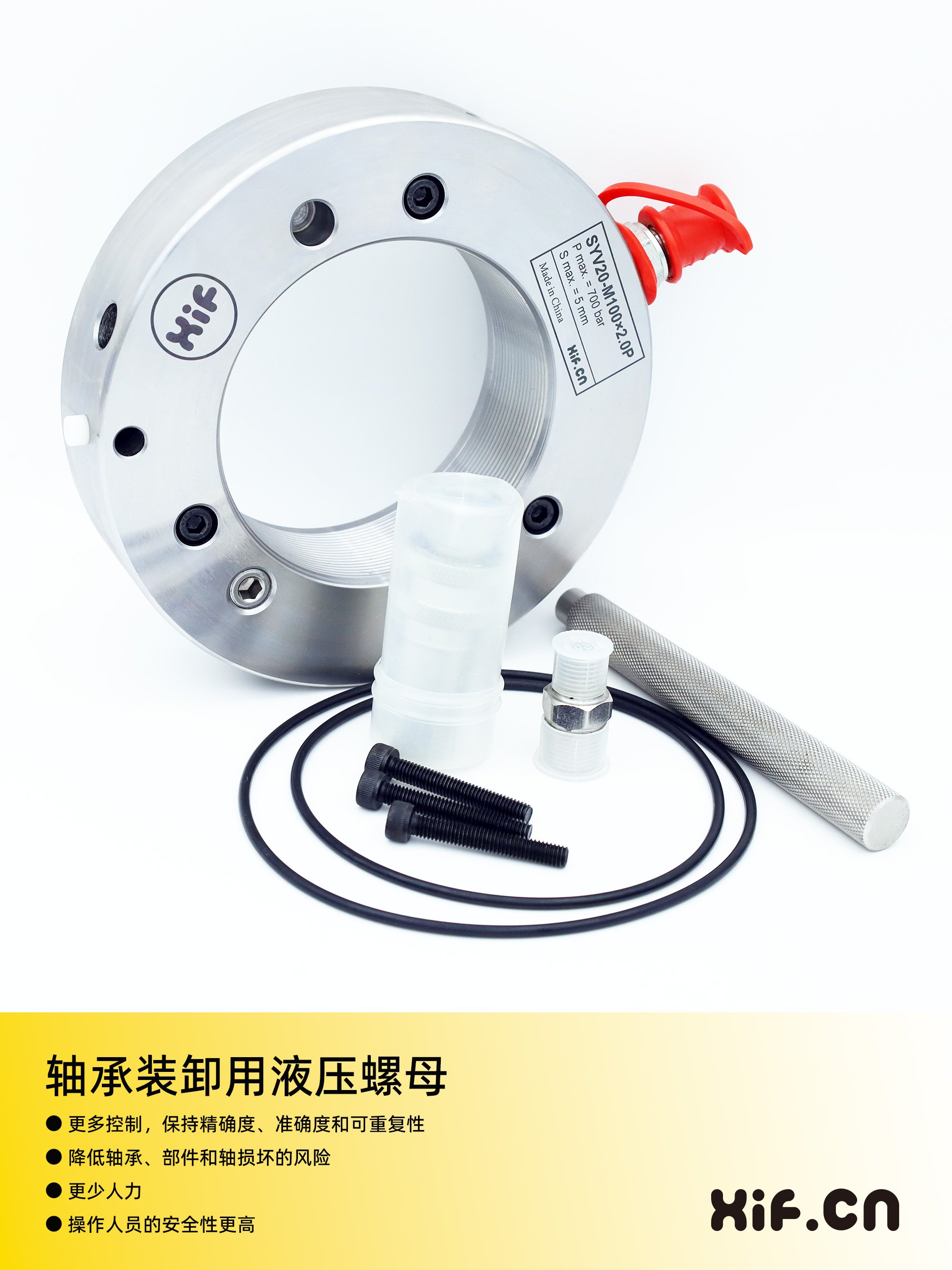

| 规格范围 | 最大压力 P max. |
|---|---|
| SYV10~SYV25 | 700 bar |
| SYV26~SYV40 | 550 bar |
| SYV41~SYV60 | 450 bar |
| SYV62~SYV100 | 400 bar |
| SYV102~SYV120 | 350 bar |
| SYV126~SYV160 | 300 bar |
| SYV170~SYV200 | 250 bar |
| 零件型号 | 公称直径 G [mm] | 外径 D [mm] | 厚度 H [mm] | 推力环外径 d1 [mm] | 推力环内径 d2 [mm] | 推力环厚度 h1 [mm] | 最大行程 S max. [mm] | 活塞面积 [mm2] | 重量 [kg] |
|---|---|---|---|---|---|---|---|---|---|
| SYV10 | M50×1.5P | 114 | 38 | 104 | 50.5 | 4 | 5 | 2900 | 2.7 |
| SYV11 | M55×2.0P | 120 | 38 | 109 | 55.5 | 4 | 5 | 3150 | 2.75 |
| SYV11-1 | M55×1.5P | 120 | 38 | 109 | 55.5 | 4 | 5 | 3150 | 2.75 |
| SYV12 | M60×2.0P | 125 | 38 | 115 | 60.5 | 5 | 5 | 3300 | 2.8 |
| SYV12-1 | M60×1.5P | 125 | 38 | 115 | 65.5 | 5 | 5 | 3300 | 2.8 |
| SYV13 | M65×2.0P | 130 | 38 | 121 | 65.5 | 5 | 5 | 3600 | 3 |
| SYV13-1 | M65×1.5P | 130 | 38 | 121 | 65.5 | 5 | 5 | 3600 | 3 |
| SYV14 | M70×2.0P | 135 | 38 | 127 | 70.5 | 5 | 5 | 3800 | 3.2 |
| SYV15 | M75×2.0P | 140 | 38 | 132 | 75.5 | 5 | 5 | 4000 | 3.4 |
| SYV16 | M80×2.0P | 146 | 38 | 137 | 80.5 | 5 | 5 | 4200 | 3.7 |
| SYV17 | M85×2.0P | 150 | 38 | 142 | 85.5 | 5 | 5 | 4400 | 3.75 |
| SYV18 | M90×2.0P | 156 | 38 | 147 | 90.5 | 5 | 5 | 4700 | 4 |
| SYV19 | M95×2.0P | 162 | 38 | 153 | 95.5 | 5 | 5 | 4900 | 4.3 |
| SYV20 | M100×2.0P | 166 | 38 | 158 | 100.5 | 6 | 5 | 5100 | 4.4 |
| SYV21 | M105×2.0P | 172 | 38 | 163 | 105.5 | 6 | 5 | 5300 | 4.65 |
| SYV22 | M110×2.0P | 178 | 38 | 169 | 110.5 | 6 | 5 | 5600 | 4.95 |
| SYV23 | M115×2.0P | 182 | 38 | 174 | 115.5 | 6 | 5 | 5800 | 5 |
| SYV24 | M120×2.0P | 188 | 38 | 179 | 120.5 | 6 | 5 | 6000 | 5.25 |
| SYV25 | M125×2.0P | 192 | 38 | 184 | 125.5 | 6 | 5 | 6200 | 5.35 |
| SYV26 | M130×2.0P | 198 | 38 | 190 | 130.5 | 6 | 5 | 6400 | 5.65 |
| SYV27 | M135×2.0P | 204 | 38 | 195 | 135.5 | 6 | 5 | 6600 | 5.9 |
| SYV28 | M140×2.0P | 208 | 38 | 200 | 140.5 | 7 | 5 | 6800 | 6 |
| SYV29 | M145×2.0P | 214 | 39 | 206 | 145.5 | 7 | 5 | 7300 | 6.5 |
| SYV30 | M150×2.0P | 220 | 39 | 211 | 150.5 | 7 | 5 | 7500 | 6.6 |
| SYV31 | M155×3.0P | 226 | 39 | 218 | 155.5 | 7 | 5 | 8100 | 6.95 |
| SYV32 | M160×3.0P | 232 | 40 | 224 | 160.5 | 7 | 6 | 8600 | 7.6 |
| SYV33 | M165×3.0P | 238 | 40 | 229 | 165.5 | 7 | 6 | 8900 | 7.9 |
| SYV34 | M170×3.0P | 244 | 41 | 235 | 170.5 | 7 | 6 | 9400 | 8.4 |
| SYV36 | M180×3.0P | 256 | 41 | 247 | 180.5 | 7 | 6 | 10300 | 9.15 |
| SYV38 | M190×3.0P | 270 | 42 | 259 | 191 | 8 | 7 | 11500 | 10.5 |
| SYV40 | M200×3.0P | 282 | 43 | 271 | 201 | 8 | 8 | 12500 | 11.5 |
| SYV41 | Tr205×4.0P | 288 | 43 | 276 | 207 | 8 | 8 | 12800 | 12 |
| SYV42 | Tr210×4.0P | 294 | 43 | 282 | 212 | 8 | 9 | 13400 | 12.5 |
| SYV43 | Tr215×4.0P | 300 | 43 | 287 | 217 | 8 | 9 | 13700 | 13 |
| SYV44 | Tr220×4.0P | 306 | 43 | 293 | 222 | 8 | 9 | 14400 | 13.5 |
| SYV45 | Tr225×4.0P | 312 | 45 | 300 | 227 | 8 | 9 | 15200 | 14.5 |
| SYV46 | Tr230×4.0P | 318 | 45 | 305 | 232 | 8 | 9 | 15500 | 14.5 |
| SYV47 | Tr235×4.0P | 326 | 46 | 311 | 237 | 8 | 10 | 16200 | 16 |
| SYV48 | Tr240×4.0P | 330 | 46 | 316 | 242 | 9 | 10 | 16500 | 16 |
| SYV50 | Tr250×4.0P | 342 | 46 | 329 | 252 | 9 | 10 | 17600 | 17.5 |
| SYV52 | Tr260×4.0P | 356 | 47 | 341 | 262 | 9 | 11 | 18800 | 19 |
| SYV54 | Tr270×4.0P | 368 | 48 | 352 | 272 | 9 | 12 | 19800 | 20.5 |
| SYV55 | Tr275×4.0P | 375 | 48 | 359 | 277 | 9 | 12 | ||
| SYV56 | Tr280×4.0P | 380 | 49 | 363 | 282 | 9 | 12 | 21100 | 22 |
| SYV58 | Tr290×4.0P | 390 | 49 | 375 | 292 | 9 | 13 | 22400 | 22.5 |
| SYV60 | Tr300×4.0P | 404 | 50 | 386 | 302 | 10 | 14 | 23600 | 25.5 |
| SYV62 | Tr310×5.0P | 416 | 52 | 397 | 312 | 10 | 14 | 24900 | 27 |
| SYV63 | Tr315×5.0P | 420 | 52 | 400 | 317 | 10 | 14 | ||
| SYV64 | Tr320×5.0P | 428 | 53 | 409 | 322 | 10 | 14 | 26300 | 29.5 |
| SYV66 | Tr330×5.0P | 438 | 53 | 419 | 332 | 10 | 14 | 27000 | 30 |
| SYV67 | Tr335×5.0P | 445 | 53 | 426 | 337 | 10 | 14 | ||
| SYV68 | Tr340×5.0P | 450 | 54 | 430 | 342 | 10 | 14 | 28400 | 31.5 |
| SYV69 | Tr345×5.0P | 456 | 54 | 436 | 347 | 10 | 14 | 29400 | 32.5 |
| SYV70 | Tr350×5.0P | 464 | 56 | 442 | 352 | 10 | 14 | 29900 | 35 |
| SYV71 | Tr355×5.0P | 470 | 56 | 448 | 357 | 10 | 15 | ||
| SYV72 | Tr360×5.0P | 472 | 56 | 455 | 362 | 10 | 15 | 31300 | 35.5 |
| SYV73 | Tr365×5.0P | 482 | 56 | 460 | 367 | 11 | 15 | 31700 | 38.5 |
| SYV74 | Tr370×5.0P | 486 | 56 | 466 | 372 | 11 | 16 | 32800 | 39 |
| SYV75 | Tr375×5.0P | 495 | 58 | 475 | 377 | 11 | 16 | ||
| SYV76 | Tr380×5.0P | 498 | 58 | 476 | 382 | 11 | 16 | 33500 | 40.5 |
| SYV77 | Tr385×5.0P | 504 | 58 | 483 | 387 | 11 | 16 | 34700 | 41 |
| SYV79 | Tr395×5.0P | 512 | 58 | 391 | 397 | 11 | 16 | ||
| SYV80 | Tr400×5.0P | 522 | 60 | 499 | 402 | 11 | 17 | 36700 | 45.5 |
| SYV82 | Tr410×5.0P | 534 | 61 | 510 | 412 | 11 | 17 | 38300 | 48 |
| SYV83 | Tr415×5.0P | 540 | 61 | 516 | 417 | 11 | 17 | ||
| SYV84 | Tr420×5.0P | 546 | 61 | 522 | 422 | 11 | 17 | 40000 | 50 |
| SYV86 | Tr430×5.0P | 556 | 62 | 532 | 432 | 11 | 17 | 40800 | 52.5 |
| SYV87 | Tr435×5.0P | 560 | 62 | 536 | 437 | 12 | 17 | ||
| SYV88 | Tr440×5.0P | 566 | 62 | 543 | 442 | 12 | 17 | 42500 | 54 |
| SYV90 | Tr450×5.0P | 580 | 64 | 554 | 452 | 12 | 17 | 44100 | 57.5 |
| SYV92 | Tr460×5.0P | 590 | 64 | 565 | 462 | 12 | 17 | 45100 | 60 |
| SYV94 | Tr470×5.0P | 602 | 65 | 576 | 472 | 12 | 18 | 46900 | 62 |
| SYV96 | Tr480×5.0P | 612 | 65 | 587 | 482 | 12 | 19 | 48600 | 63 |
| SYV98 | Tr490×5.0P | 624 | 66 | 597 | 492 | 12 | 19 | 49500 | 66 |
| SYV100 | Tr500×5.0P | 636 | 67 | 609 | 502 | 12 | 19 | 51500 | 70 |
| SYV102 | Tr510×6.0P | 648 | 68 | 624 | 512 | 12 | 20 | 53300 | 74 |
| SYV104 | Tr520×6.0P | 658 | 68 | 634 | 522 | 13 | 20 | 54300 | 75 |
| SYV106 | Tr530×6.0P | 670 | 69 | 645 | 532 | 13 | 21 | 56200 | 79 |
| SYV108 | Tr540×6.0P | 682 | 69 | 657 | 542 | 13 | 21 | 58200 | 81 |
| SYV110 | Tr550×6.0P | 693 | 70 | 667 | 552 | 13 | 21 | 59200 | 84 |
| SYV112 | Tr560×6.0P | 704 | 71 | 678 | 562 | 13 | 22 | 61200 | 88 |
| SYV114 | Tr570×6.0P | 716 | 72 | 689 | 572 | 13 | 23 | 63200 | 91 |
| SYV116 | Tr580×6.0P | 726 | 72 | 699 | 582 | 13 | 23 | 64200 | 94 |
| SYV118 | Tr590×6.0P | 740 | 72 | 713 | 592 | 13 | 23 | ||
| SYV120 | Tr600×6.0P | 748 | 73 | 721 | 602 | 13 | 23 | 67300 | 100 |
| SYV122 | Tr610×6.0P | 760 | 74 | 733 | 613 | 14 | 23 | ||
| SYV125 | Tr625×6.0P | 775 | 74 | 752 | 628 | 14 | 23 | ||
| SYV126 | Tr630×6.0P | 782 | 74 | 754 | 632 | 14 | 23 | 72900 | 110 |
| SYV130 | Tr650×6.0P | 804 | 75 | 775 | 652 | 14 | 23 | 76200 | 115 |
| SYV131 | Tr655×6.0P | 810 | 75 | 781 | 658 | 14 | 24 | ||
| SYV134 | Tr670×6.0P | 826 | 75 | 796 | 672 | 14 | 24 | 79500 | 120 |
| SYV136 | Tr680×6.0P | 837 | 77 | 807 | 683 | 14 | 24 | ||
| SYV138 | Tr690×6.0P | 848 | 77 | 819 | 692 | 14 | 25 | 84200 | 127 |
| SYV139 | Tr695×6.0P | 855 | 78 | 826 | 698 | 14 | 25 | ||
| SYV142 | Tr710×7.0P | 870 | 78 | 840 | 712 | 15 | 25 | 87700 | 135 |
| SYV144 | Tr720×7.0P | 883 | 79 | 853 | 723 | 15 | 25 | ||
| SYV148 | Tr740×7.0P | 910 | 79 | 880 | 743 | 15 | 25 | 95200 | 146 |
| SYV150 | Tr750×7.0P | 912 | 79 | 883 | 752 | 15 | 25 | ||
| SYV152 | Tr760×7.0P | 935 | 80 | 906 | 763 | 15 | 25 | ||
| SYV156 | Tr780×7.0P | 955 | 83 | 926 | 783 | 15 | 28 | ||
| SYV160 | Tr800×7.0P | 970 | 82 | 936 | 803 | 16 | 28 | 103900 | 161 |
| SYV166 | Tr830×7.0P | 1000 | 82 | 966 | 833 | 16 | 29 | ||
| SYV170 | Tr850×7.0P | 1020 | 82 | 990 | 853 | 16 | 29 | 114600 | 181 |
| SYV176 | Tr880×7.0P | 1050 | 82 | 1020 | 883 | 16 | 29 | ||
| SYV180 | Tr900×7.0P | 1070 | 84 | 1043 | 903 | 16 | 29 | 124100 | 205 |
| SYV186 | Tr930×7.0P | 1100 | 84 | 1073 | 933 | 16 | 30 | ||
| SYV190 | Tr950×8.0P | 1120 | 84 | 1097 | 953 | 16 | 30 | 135700 | 218 |
| SYV200 | Tr1000×8.0P | 1180 | 88 | 1150 | 1002 | 17 | 30 | 145800 | 239 |
| SYV212 | Tr1060×8.0P | 1255 | 97 | 1225 | 1063 | 18 | 32 | ||
| SYV216 | Tr1080×8.0P | 1280 | 100 | 1250 | 1083 | 18 | 33 | ||
| SYV224 | Tr1120×8.0P | 1340 | 106 | 1310 | 1123 | 19 | 36 | ||
| SYV236 | Tr1180×8.0P | 1430 | 113 | 1400 | 1183 | 22 | 39 |
