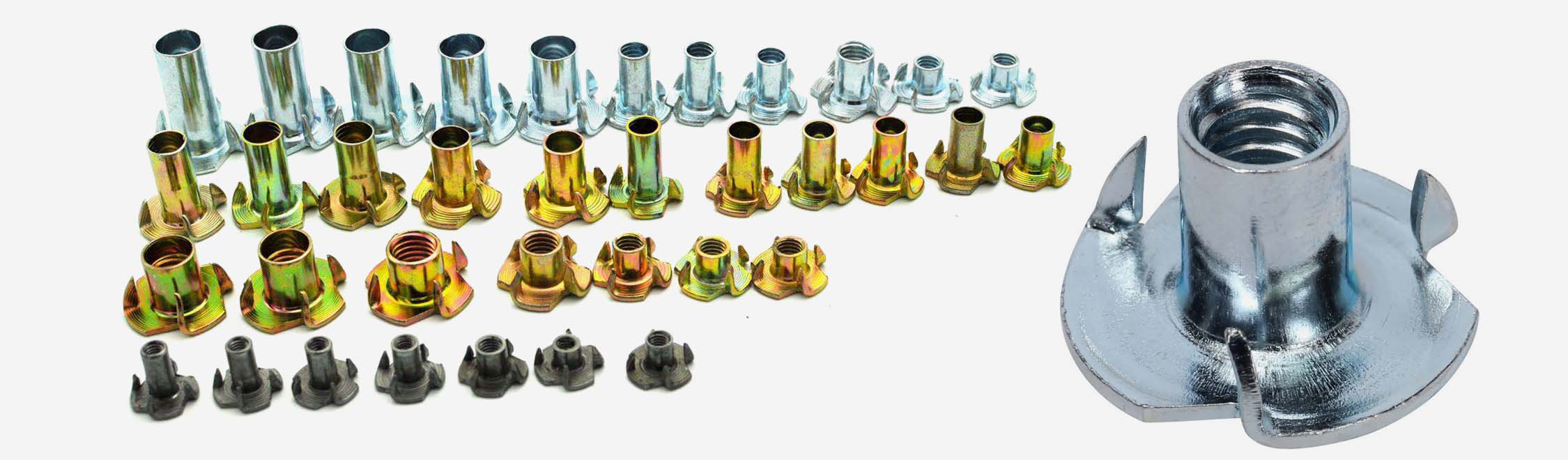

SAK DIN1624四爪螺母

DIN1624四爪螺母

DIN1624四爪螺母又称带爪三通螺母,有嵌入紧扣、锁紧功能,一般广泛使用于各类家用电器、办公电器、玩具、炉具、家具、电动自行车、滑板车、 溜冰鞋、运动器材、箱包类及电子仪表等机械制造行业。

  • 材质:碳钢或不锈钢;
  • 表面:镀锌;
  • 颜色:蓝白、黄、黑。
  • 尺寸:M4、M5、M6、M8、M10-M20(可非标定制)

DIN1624四爪螺母

型号规格螺纹
牙纹长度
(mm)
牙纹类别H
(mm)
D
(mm)
Dc
(mm)
C
(mm)
De
(mm)
包装数量重量/1000个
(kg)
DIN1624-M4-01M4×0.7P6.7全牙6.73.414.51.25.7100001.95
DIN1624-M4-02M4×0.7P8全牙83.414.51.25.7100002.25
DIN1624-M4-03M4×0.7P10全牙103.414.51.25.7100002.30
DIN1624-M4-04M4×0.7P11.5全牙11.53.414.51.25.7100002.45
DIN1624-M4-05M4×0.7P12.5全牙12.53.414.51.25.7100002.68
DIN1624-M4-06M4×0.7P13全牙133.414.51.25.7100002.78
DIN1624-M5-01M5×0.8P6全牙64.3514.51.26.35100001.85
DIN1624-M5-02M5×0.8P8全牙84.3514.51.26.35100002.04
DIN1624-M5-03M5×0.8P10全牙104.3514.51.26.35100002.25
DIN1624-M5-04M5×0.8P12全牙124.3514.51.26.35100002.27
DIN1624-M5-05M5×0.8P17全牙174.3514.51.26.35100003.04
DIN1624-M6-01M6×1.0P7.3全牙7.35.317.51.47.480003.10
DIN1624-M6-02M6×1.0P8全牙85.317.51.47.480003.32
DIN1624-M6-03M6×1.0P9全牙95.317.51.47.480003.35
DIN1624-M6-04M6×1.0P10全牙105.317.51.47.480003.33
DIN1624-M6-05M6×1.0P11全牙115.317.51.47.480003.65
DIN1624-M6-06M6×1.0P12全牙125.317.51.47.950004.14
DIN1624-M6-07M6×1.0P14全牙145.317.51.47.950004.54
DIN1624-M6-08M6×1.0P16全牙165.317.51.47.950004.84
DIN1624-M6-09M6×1.0P17全牙175.317.51.47.950005.06
DIN1624-M6-10M6×1.0P6-6.5半牙125.317.51.47.950003.73
DIN1624-M6-11M6×1.0P6.5-7半牙145.317.51.47.950004.00
DIN1624-M6-12M6×1.0P7-7.5半牙165.317.51.47.950004.30
DIN1624-M6-13M6×1.0P7.5-8半牙185.317.51.47.950004.58
DIN1624-M6-14M6×1.0P8-8.5半牙205.317.51.47.950004.88
DIN1624-M6-15M6×1.0P8.5-9半牙225.317.51.47.950005.22
DIN1624-M6-16M6×1.0P10-10.5半牙245.317.51.47.950005.42
DIN1624-M6-17M6×1.0P9全牙95.3191.47.450003.63
DIN1624-M6-18M6×1.0P10全牙105.3191.47.45000/
DIN1624-M6-19M6×1.0P12全牙125.3191.47.45000/
DIN1624-M6-20M6×1.0P14全牙145.3191.47.45000/
DIN1624-M6-21M6×1.0P16全牙165.3191.47.45000/
DIN1624-M6-22M6×1.0P6-6.5半牙125.3191.47.95000/
DIN1624-M6-23M6×1.0P6.5-7半牙145.3191.47.95000/
DIN1624-M6-24M6×1.0P7-7.5半牙165.3191.47.95000/
DIN1624-M6-25M6×1.0P7.5-8半牙185.3191.47.95000/
DIN1624-M8-01M8×1.25P8全牙86.9211.59.450004.90
DIN1624-M8-02M8×1.25P10全牙106.9211.59.450005.09
DIN1624-M8-03M8×1.25P11全牙116.9211.59.450005.56
DIN1624-M8-04M8×1.25P12全牙126.9211.59.450005.71
DIN1624-M8-05M8×1.25P13全牙136.9211.59.450005.72
DIN1624-M8-06M8×1.25P14全牙146.9211.59.450006.00
DIN1624-M8-07M8×1.25P16全牙166.9211.59.440006.59
DIN1624-M8-08M8×1.25P17全牙176.9211.59.440006.71
DIN1624-M8-09M8×1.25P6.5-7半牙146.9211.59.450005.27
DIN1624-M8-10M8×1.25P8.5-9半牙166.9211.59.440005.83
DIN1624-M8-11M8×1.25P8.5-9半牙186.9211.59.440005.94
DIN1624-M8-12M8×1.25P8.5-9半牙206.9211.59.430006.43
DIN1624-M8-13M8×1.25P9-9.5半牙226.9211.59.430006.60
DIN1624-M8-14M8×1.25P9.5-10半牙246.9211.59.430006.97
DIN1624-M8-15M8×1.25P10-10.5半牙266.9211.59.430007.00
DIN1624-M8-16M8×1.25P10全牙106.921.51.59.450005.08
DIN1624-M8-17M8×1.25P11全牙116.921.51.59.450006.19
DIN1624-M8-18M8×1.25P12全牙126.921.51.59.45000/
DIN1624-M8-19M8×1.25P14全牙146.921.51.59.45000/
DIN1624-M8-20M8×1.25P16全牙166.921.51.59.44000/
DIN1624-M8-21M8×1.25P7-7.5半牙186.921.51.59.440005.59
DIN1624-M8-22M8×1.25P8-8.5半牙206.921.51.59.430005.86
DIN1624-M8-23M8×1.25P10全牙106.9221.59.45000/
DIN1624-M8-24M8×1.25P11全牙116.9221.59.45000/
DIN1624-M8-25M8×1.25P12全牙126.9221.59.45000/
DIN1624-M8-26M8×1.25P14全牙146.9221.59.45000/
DIN1624-M8-27M8×1.25P16全牙166.9221.59.44000/
DIN1624-M10-1M10×1.5P12全牙12924.51.51230008.06
DIN1624-M10-2M10×1.5P14全牙14924.51.51230008.57
DIN1624-M10-3M10×1.5P16全牙16924.51.51230009.52
DIN1624-M10-4M10×1.5P18全牙18924.51.512300010.30
DIN1624-M10-5M10×1.5P20全牙20924.51.512300010.88
DIN1624-M10-6M10×1.5P/半牙12924.51.5123000/
DIN1624-M10-7M10×1.5P9-9.5半牙14924.51.51230008.26
DIN1624-M10-8M10×1.5P9-9.5半牙16924.51.51230008.60
DIN1624-M10-9M10×1.5P9.5-10半牙18924.51.51230009.09
DIN1624-M10-10M10×1.5P/半牙20924.51.5122500/
DIN1624-M10-11M10×1.5P11-11.5半牙22924.51.512250010.30
DIN1624-M10-12M10×1.5P11-11.5半牙24924.51.512250010.72
DIN1624-M10-13M10×1.5P11-11.5半牙26924.51.512250010.55
DIN1624-M10-14M10×1.5P/半牙28924.51.5122000/
DIN1624-M10-15M10×1.5P18-18.5半牙30924.51.512200012.25
