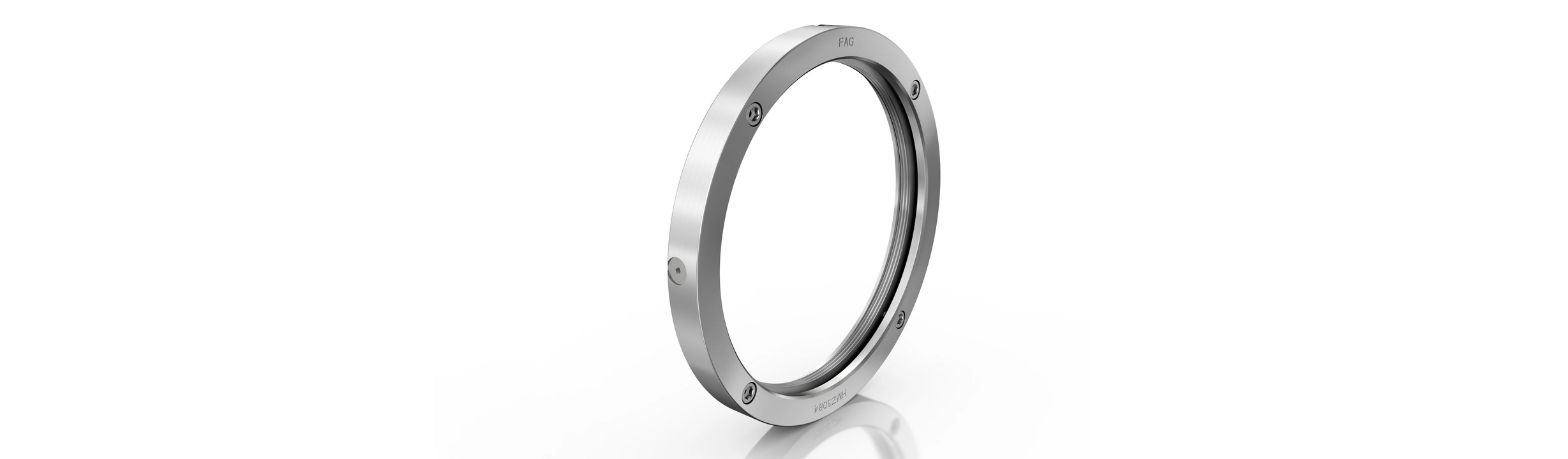

HMZ系列开槽锁紧螺母可以使轴承实现在圆柱或圆锥轴上，或在紧定套上的精确及可靠的轴向定位，它们已经成功应用于造纸机、风力涡轮机。
HMZ系列锁紧螺母可与传统HM和KM系列锁紧螺母互换。它们通过压力锁紧而不是通过垫圈或卡板来固定住。四个或八个轴向紧固螺钉使得锁紧螺母在圆周方向上的锁紧力一致。将该锁紧螺母安装在轴上时，只需在螺母外圆上相应的四或八个盲螺孔中旋入螺杆作为安装手柄即可。不需要在螺母外径上开槽或附加任何止动件。由于轴上不必有止动槽，其强度会更高、生产更为经济。
- 抗拉强度不小于350N/mm²
- 表面涂层可选：锌磷酸化、Corrotect、电镀等
- 螺纹直径200mm以下细牙螺纹等级6H，较大直径的梯形螺纹等级7H
| 零件型号 | G 螺纹直径 × 螺距 | D (mm) | h (mm) | d (mm) | ds (mm) | 紧固螺钉数量 | 每个紧固螺钉的拧紧力矩 (Nm) | 质量 (kg) |
|---|---|---|---|---|---|---|---|---|
| HMZ18 | M90×2.0P | 120 | 16 | 108 | M5 | 4 | 6 | 0.6 |
| HMZ19 | M95×2.0P | 125 | 17 | 113 | M5 | 4 | 6 | 0.7 |
| HMZ20 | M100×2.0P | 130 | 18 | 120 | M6 | 4 | 11 | 0.8 |
| HMZ21 | M105×2.0P | 140 | 18 | 126 | M6 | 4 | 11 | 0.9 |
| HMZ22 | M110×2.0P | 145 | 19 | 133 | M6 | 4 | 11 | 1 |
| HMZ23 | M115×2.0P | 150 | 19 | 137 | M6 | 4 | 11 | 1.1 |
| HMZ24 | M120×2.0P | 155 | 20 | 138 | M6 | 4 | 11 | 1.1 |
| HMZ25 | M125×2.0P | 160 | 21 | 148 | M6 | 4 | 11 | 1.3 |
| HMZ26 | M130×2.0P | 165 | 21 | 149 | M6 | 4 | 11 | 1.3 |
| HMZ27 | M135×2.0P | 175 | 22 | 160 | M6 | 4 | 11 | 1.6 |
| HMZ28 | M140×2.0P | 180 | 22 | 160 | M6 | 4 | 11 | 1.6 |
| HMZ29 | M145×2.0P | 190 | 24 | 171 | M6 | 4 | 11 | 2.2 |
| HMZ30 | M150×2.0P | 195 | 24 | 171 | M6 | 4 | 11 | 2.2 |
| HMZ31 | M155×3.0P | 200 | 25 | 182 | M6 | 4 | 11 | 2.4 |
| HMZ32 | M160×3.0P | 210 | 25 | 182 | M6 | 4 | 11 | 2.6 |
| HMZ33 | M165×3.0P | 210 | 26 | 193 | M8 | 4 | 27 | 2.8 |
| HMZ34 | M170×3.0P | 220 | 26 | 193 | M8 | 4 | 27 | 2.9 |
| HMZ36 | M180×3.0P | 230 | 27 | 203 | M8 | 4 | 27 | 3.2 |
| HMZ38 | M190×3.0P | 240 | 28 | 214 | M8 | 4 | 27 | 3.5 |
| HMZ40 | M200×3.0P | 250 | 29 | 226 | M8 | 4 | 27 | 3.9 |
| HMZ3044 | Tr220×4.0P | 260 | 30 | 242 | M8 | 4 | 27 | 3.4 |
| HMZ3048 | Tr240×4.0P | 290 | 34 | 270 | M10 | 4 | 54 | 5.4 |
| HMZ3052 | Tr260×4.0P | 310 | 34 | 290 | M10 | 4 | 54 | 5.8 |
| HMZ3056 | Tr280×4.0P | 330 | 38 | 310 | M10 | 4 | 54 | 6.9 |
| HMZ3060 | Tr300×4.0P | 360 | 42 | 336 | M10 | 4 | 54 | 10 |
| HMZ3064 | Tr320×5.0P | 380 | 42 | 356 | M10 | 4 | 54 | 10.6 |
| HMZ3068 | Tr340×5.0P | 400 | 45 | 376 | M12 | 4 | 93 | 12.1 |
| HMZ3072 | Tr360×5.0P | 420 | 45 | 394 | M12 | 4 | 93 | 12.5 |
| HMZ3076 | Tr380×5.0P | 450 | 48 | 422 | M12 | 4 | 93 | 16.7 |
| HMZ3080 | Tr400×5.0P | 470 | 52 | 442 | M16 | 4 | 230 | 19.1 |
| HMZ3084 | Tr420×5.0P | 490 | 52 | 462 | M16 | 4 | 230 | 19.8 |
| HMZ3088 | Tr440×5.0P | 520 | 60 | 490 | M16 | 4 | 230 | 27.8 |
| HMZ3092 | Tr460×5.0P | 540 | 60 | 510 | M16 | 4 | 230 | 29.1 |
| HMZ3096 | Tr480×5.0P | 560 | 60 | 530 | M16 | 4 | 230 | 30.1 |
| HMZ30/500 | Tr500×5.0P | 580 | 68 | 550 | M20 | 4 | 464 | 35.7 |
| HMZ30/530 | Tr530×6.0P | 630 | 68 | 590 | M20 | 4 | 464 | 46.9 |
| HMZ30/560 | Tr560×6.0P | 650 | 75 | 610 | M20 | 4 | 464 | 48.5 |
| HMZ30/600 | Tr600×6.0P | 700 | 75 | 660 | M20 | 4 | 464 | 58.7 |
| HMZ30/630 | Tr630×6.0P | 730 | 75 | 690 | M20 | 4 | 464 | 61.2 |
| HMZ30/670 | Tr670×6.0P | 780 | 80 | 740 | M20 | 4 | 464 | 77.5 |
| HMZ30/710 | Tr710×7.0P | 830 | 90 | 780 | M20 | 4 | 464 | 99.5 |
| HMZ30/750 | Tr750×7.0P | 870 | 90 | 820 | M20 | 4 | 464 | 105 |
| HMZ30/800 | Tr800×7.0P | 920 | 90 | 870 | M20 | 4 | 464 | 111 |
| HMZ30/850 | Tr850×7.0P | 980 | 90 | 925 | M20 | 4 | 464 | 119 |
| HMZ30/900 | Tr900×7.0P | 1 030 | 100 | 975 | M24 | 8 | 798 | 142 |
| HMZ30/950 | Tr950×8.0P | 1 080 | 100 | 1 025 | M24 | 8 | 798 | 150 |
| HMZ30/1000 | Tr1000×8.0P | 1 140 | 100 | 1 085 | M24 | 8 | 798 | 173 |
| HMZ30/1060 | Tr1060×8.0P | 1 200 | 100 | 1 145 | M24 | 8 | 798 | 184 |
| HMZ30/1120 | Tr1120×8.0P | 1 260 | 100 | 1 205 | M24 | 8 | 798 | 194 |
| HMZ30/1180 | Tr1180×8.0P | 1 320 | 100 | 1 265 | M24 | 8 | 798 | 206 |
| HMZ30/1250 | Tr1250×8.0P | 1 390 | 110 | 1 335 | M24 | 8 | 798 | 245 |
| HMZ30/1320 | Tr1320×8.0P | 1 460 | 110 | 1 405 | M24 | 8 | 798 | 257 |
| HMZ30/1400 | Tr1400×8.0P | 1 540 | 110 | 1 485 | M24 | 8 | 798 | 272 |
| HMZ30/1500 | Tr1500×8.0P | 1 650 | 110 | 1 595 | M24 | 8 | 798 | 312 |
