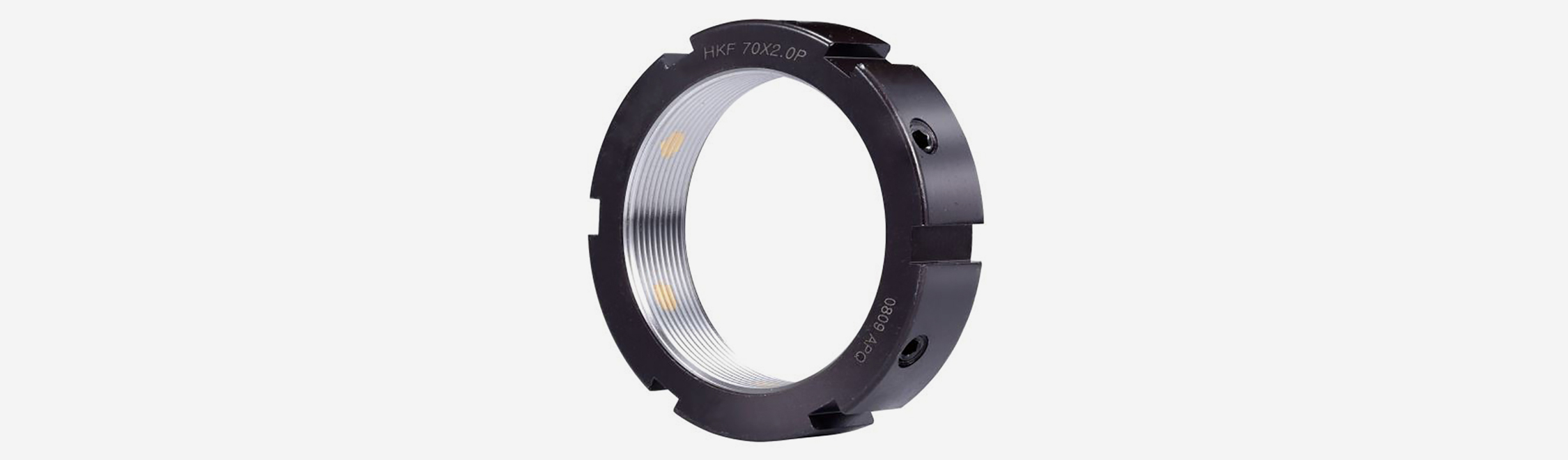

HKF系列精密研磨螺母为NIKKI独家专利螺母，在锁定后其面压变化小于5%内，可有效防止螺母因面压过高而产生过热、或面压不足而产生松脱的问题。
HKF系列研磨螺母的加厚型设计著重于轴向负荷；特殊角度的锁定，以改良径向锁紧与传统30°锁紧因为力学因素而造成的轴向力增加与减少的物理现象，特别适用于高精度与高稳定度的量产装配，使组装的品质均一化并且有效提高组装效率。
本产品为精密研磨加工，其制动螺丝之固锁方向为15°配合螺纹角的设计，使制动铜完全贴合于螺纹面，更能达到安定精准的功能。
可免除锁定垫片与键槽之需要。
组装程序正确可重複使用。
- 材质：SCM440
- 硬度：HRC28°~32°
- 精度：ISO 4H
- 牙面垂直度偏摆：0.002mm
| 零件型号 | d1 ISO-4H | D (mm) | h (mm) | d (mm) | n | g (mm) | t (mm) | 3 -M | 螺钉拧紧力矩 (Nm) |
|---|---|---|---|---|---|---|---|---|---|
| HKF15×1.0P | M15×1.0P | 30 | 14 | 25 | 3 | 4 | 2 | 3-M6 | 8 |
| HKF17×1.0P | M17×1.0P | 32 | 16 | 27 | 3 | 4 | 2 | 3-M6 | 8 |
| HKF20×1.0P | M20×1.0P | 38 | 16 | 33 | 3 | 4 | 2 | 3-M6 | 8 |
| HKF20×1.5P | M20×1.5P | 38 | 16 | 33 | 3 | 4 | 2 | 3-M6 | 8 |
| HKF25×1.5P | M25×1.5P | 38 | 18 | 33 | 3 | 5 | 2 | 3-M6 | 8 |
| HKF30×1.5P | M30×1.5P | 45 | 18 | 40 | 3 | 5 | 2 | 3-M6 | 8 |
| HKF35×1.5P | M35×1.5P | 52 | 18 | 47 | 3 | 5 | 2 | 3-M8 | 19 |
| HKF40×1.5P | M40×1.5P | 58 | 20 | 52 | 3 | 6 | 2.5 | 3-M8 | 19 |
| HKF45×1.5P | M45×1.5P | 65 | 20 | 59 | 3 | 6 | 2.5 | 3-M8 | 19 |
| HKF50×1.5P | M50×1.5P | 70 | 20 | 64 | 3 | 6 | 2.5 | 3-M8 | 19 |
| HKF55×1.5P | M55×1.5P | 75 | 22 | 68 | 3 | 7 | 3 | 3-M8 | 19 |
| HKF55×2.0P | M55×2.0P | 75 | 22 | 68 | 3 | 7 | 3 | 3-M8 | 19 |
| HKF60×1.5P | M60×1.50 | 80 | 22 | 73 | 3 | 7 | 3 | 3-M8 | 19 |
| HKF60×2.0P | M60×2.0P | 80 | 22 | 73 | 3 | 7 | 3 | 3-M8 | 19 |
| HKF65×1.5P | M65×1.50 | 85 | 22 | 78 | 3 | 7 | 3 | 3-M8 | 19 |
| HKF65×2.0P | M65×2.0P | 85 | 22 | 78 | 3 | 7 | 3 | 3-M8 | 19 |
| HKF70×1.5P | M70×1.50 | 92 | 24 | 84 | 6 | 8 | 3.5 | 3-M8 | 19 |
| HKF70×2.0P | M70×2.0P | 92 | 24 | 84 | 6 | 8 | 3.5 | 3-M8 | 19 |
| HKF75×1.5P | M75×1.50 | 98 | 24 | 90 | 6 | 8 | 3.5 | 3-M8 | 19 |
| HKF75×2.0P | M75×2.0P | 98 | 24 | 90 | 6 | 8 | 3.5 | 3-M8 | 19 |
| HKF80×2.0P | M80×2.0P | 105 | 24 | 96 | 6 | 8 | 3.5 | 3-M8 | 19 |
| HKF85×2.0P | M85×2.0P | 110 | 24 | 102 | 6 | 8 | 3.5 | 3-M8 | 19 |
| HKF90×2.0P | M90×2.0P | 120 | 26 | 108 | 6 | 10 | 4 | 3-M8 | 19 |
| HKF95×2.0P | M95×2.0P | 125 | 26 | 113 | 6 | 10 | 4 | 3-M8 | 19 |
| HKF100×2.0P | M100×2.0P | 130 | 26 | 118 | 6 | 10 | 4 | 3-M8 | 19 |
| HKF105×2.0P | M105×2.0P | 140 | 28 | 125 | 6 | 10 | 4 | 3-M10 | 36 |
| HKF110×2.0P | M110×2.0P | 145 | 28 | 132 | 6 | 10 | 4 | 6-M10 | 36 |
| HKF115×2.0P | M115×2.0P | 150 | 28 | 137 | 6 | 10 | 4 | 6-M10 | 36 |
| HKF120×2.0P | M120×2.0P | 155 | 30 | 142 | 6 | 12 | 5 | 3-M10 | 36 |
| HKF125×2.0P | M125×2.0P | 160 | 30 | 147 | 6 | 12 | 5 | 3-M10 | 36 |
| HKF130×2.0P | M130×2.0P | 165 | 30 | 152 | 6 | 12 | 5 | 3-M10 | 36 |
| HKF135×2.0P | M135×2.0P | 175 | 32 | 160 | 6 | 12 | 5 | 6-M10 | 36 |
| HKF140×2.0P | M140×2.0P | 180 | 32 | 165 | 6 | 12 | 5 | 3-M10 | 36 |
| HKF145×2.0P | M145×2.0P | 190 | 32 | 175 | 6 | 12 | 5 | 3-M10 | 36 |
| HKF150×2.0P | M150×2.0P | 195 | 32 | 180 | 6 | 12 | 5 | 3-M10 | 36 |
| HKF155×3.0P | M155×3.0P | 200 | 34 | 180 | 6 | 14 | 6 | 3-M10 | 36 |
| HKF160×3.0P | M160×3.0P | 210 | 34 | 190 | 6 | 14 | 6 | 3-M10 | 36 |
| HKF165×3.0P | M165×3.0P | 210 | 34 | 190 | 6 | 14 | 6 | 3-M10 | 36 |
| HKF170×3.0P | M170×3.0P | 220 | 34 | 200 | 6 | 14 | 6 | 3-M10 | 36 |
| HKF180×3.0P | M180×3.0P | 230 | 36 | 205 | 6 | 16 | 7 | 3-M12 | 60 |
| HKF190×3.0P | M190×3.0P | 240 | 36 | 215 | 6 | 16 | 7 | 3-M12 | 60 |
| HKF200×3.0P | M200×3.0P | 250 | 38 | 225 | 6 | 16 | 7 | 3-M12 | 60 |
